Next Generation Design – The Social Shell

A two-day team workshop for a design-build



Inspiring the next generation of designers, architects and engineers!


What

  • Architecture and engineering workshop (2 days)
  • Pavilion construction (2 days)

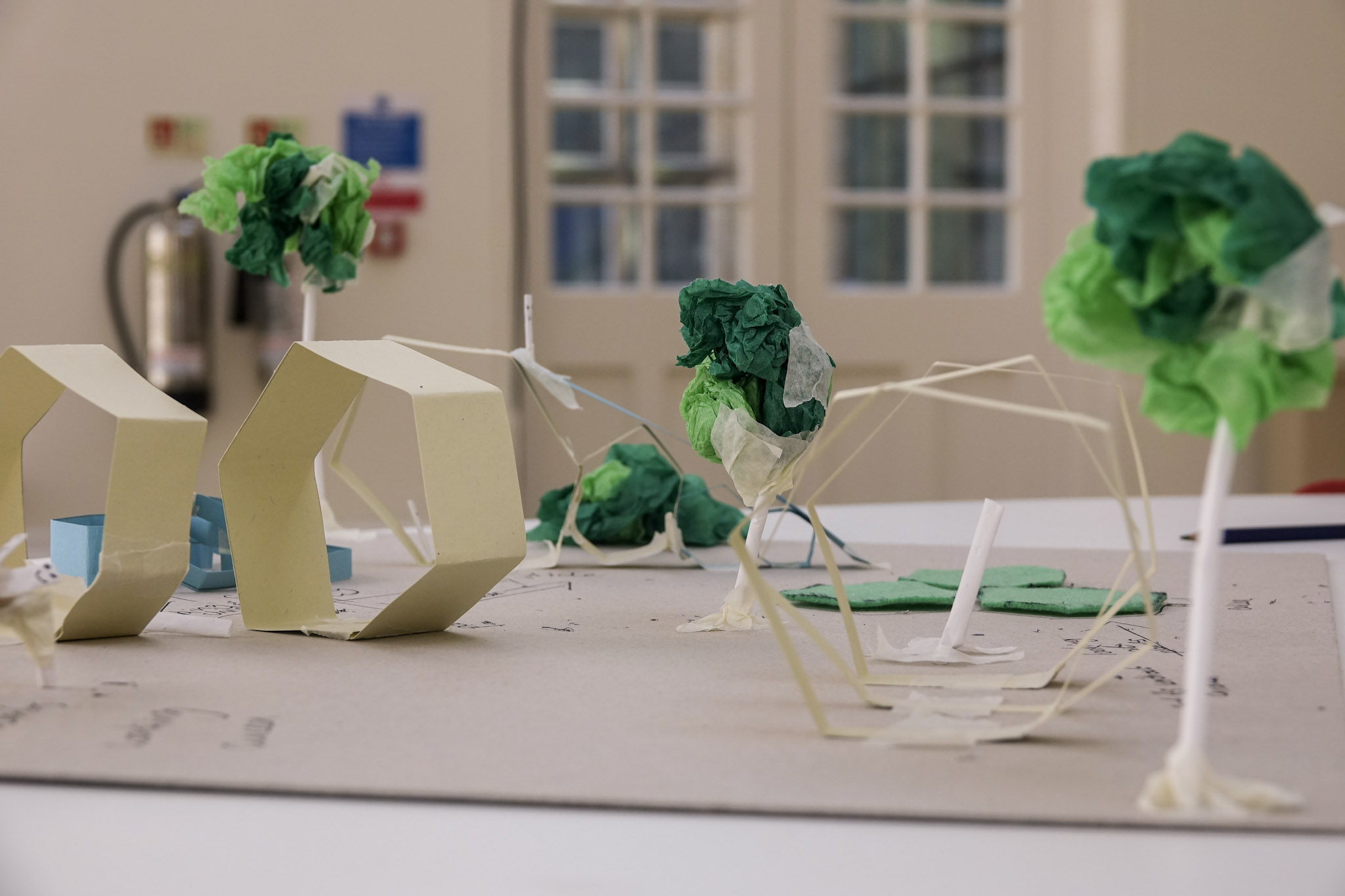

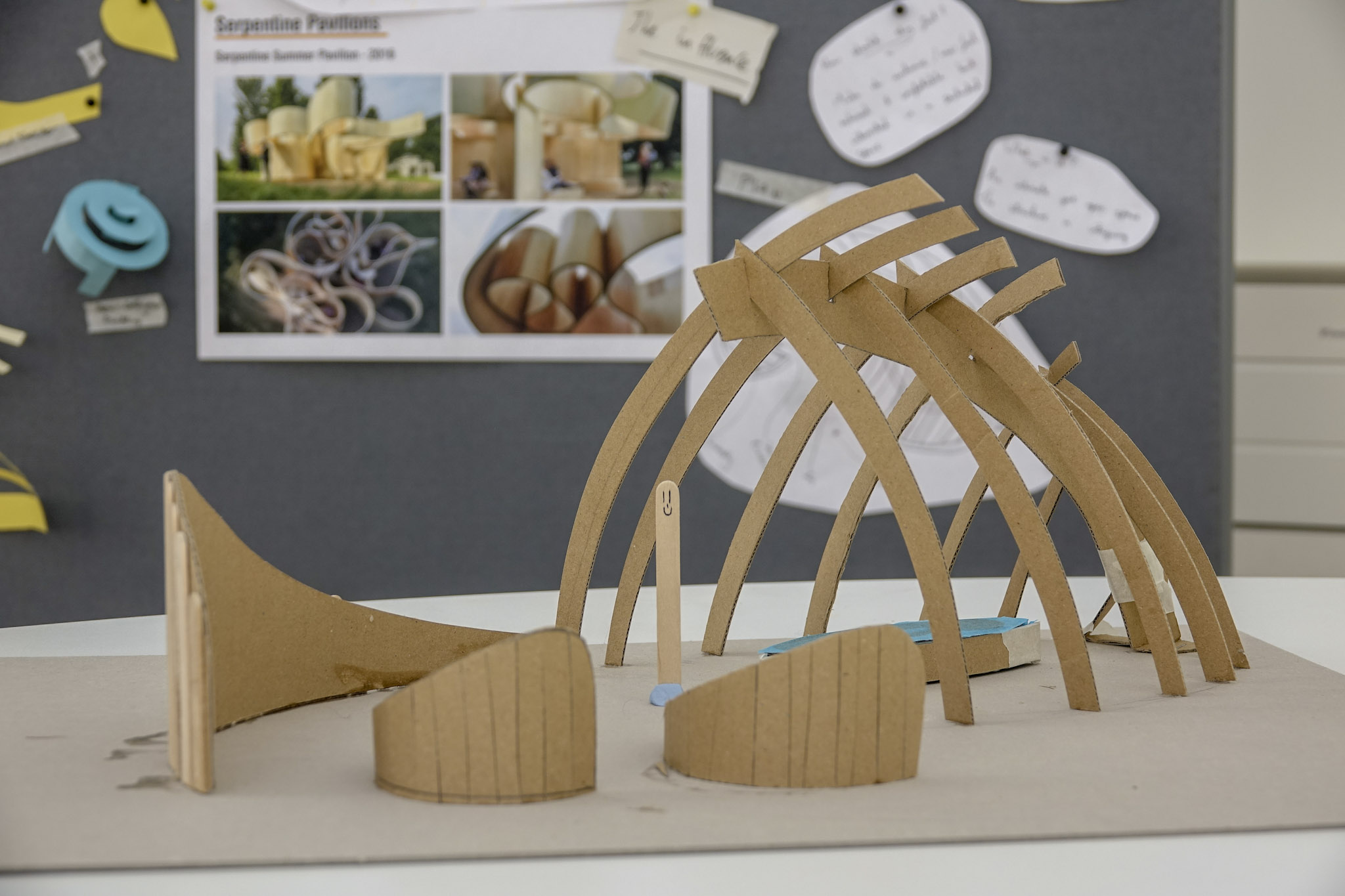

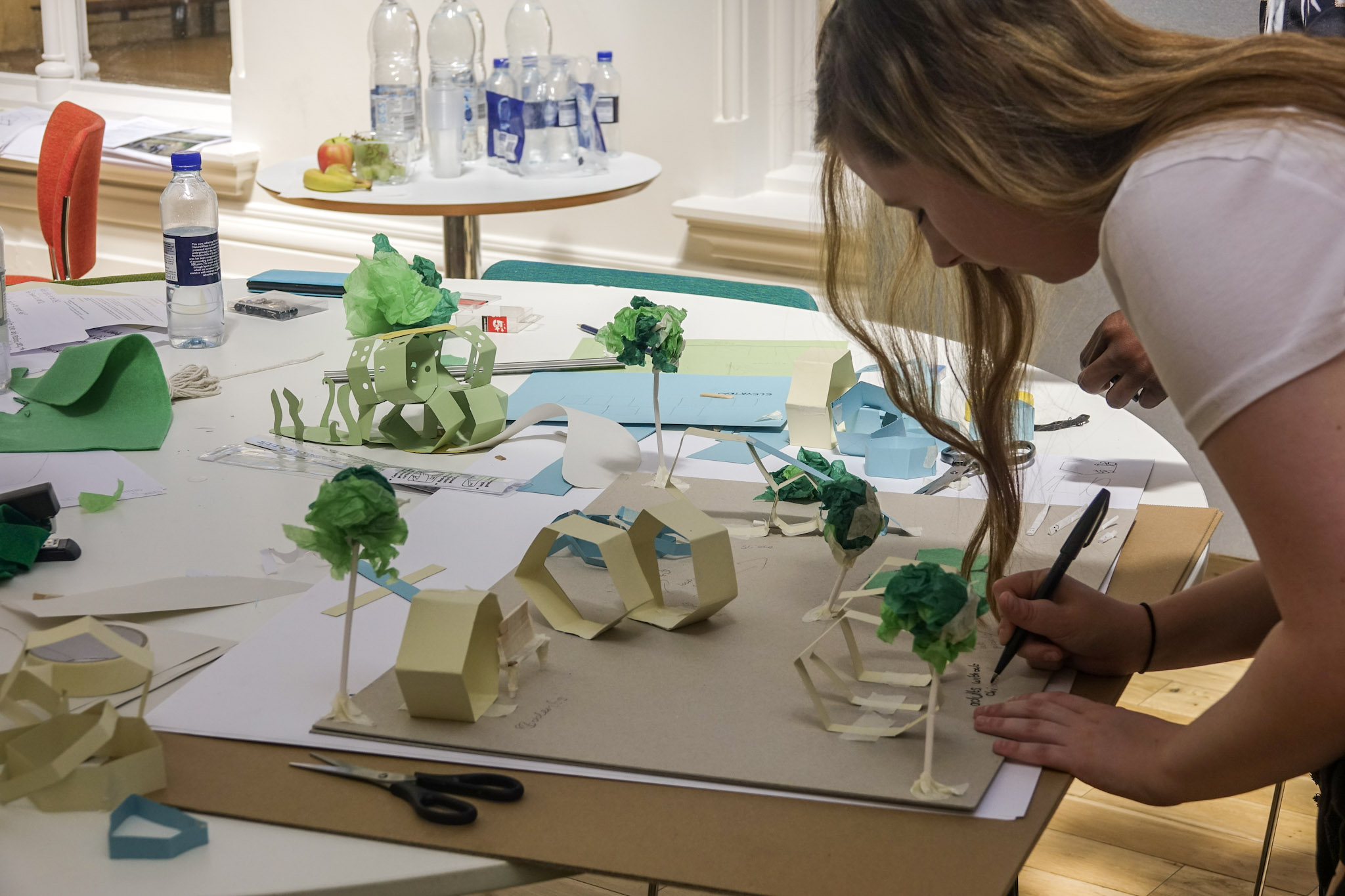

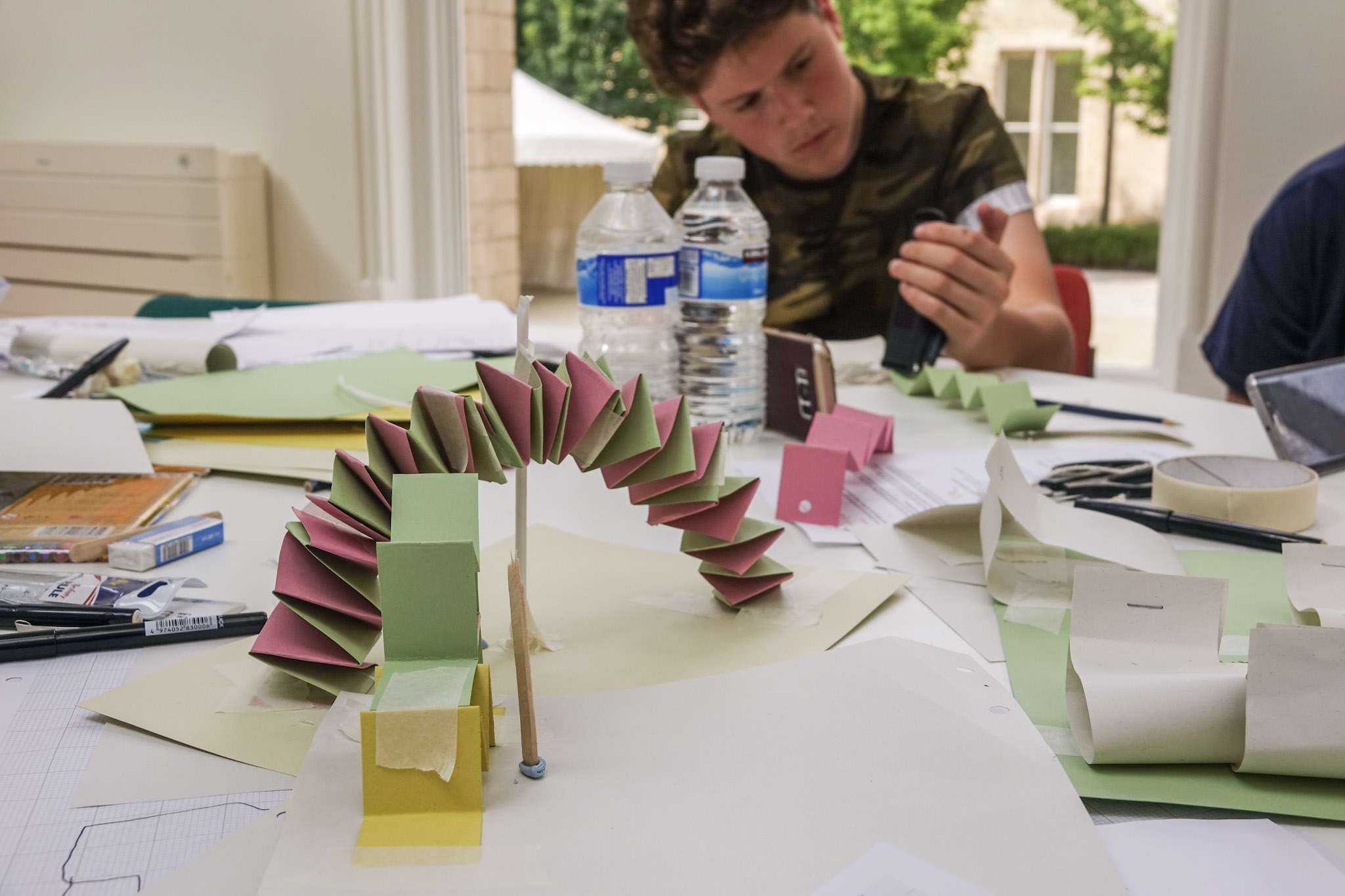

The 2-day workshop were a mix of short talks from professionals about architecture and engineering, and design workshops to allow the students to put what they’ve learnt into action. In small teams they designed a pavilion to meet a real brief for a structure in the heart of Nottingham, with a given set of materials; creating concept sketches and models, detailed drawings and explaining how they’d build it. At the end of the weekend the teams presented their designs to a panel of friendly architects and engineers from academia and industry.

The workshops provide an opportunity for students to…

  • develop an understanding of what architects and engineers do
  • consider new careers and tailor their A-levels to match
  • gain experience for their personal statement
  • have a fun and creative weekend!

… as well as providing an opportunity for design professionals to…

  • teach the fundamentals of their careers
  • develop hands-on teaching, designing and construction skills
  • meet other like-minded designers
  • ensure our industries become more diverse and representative

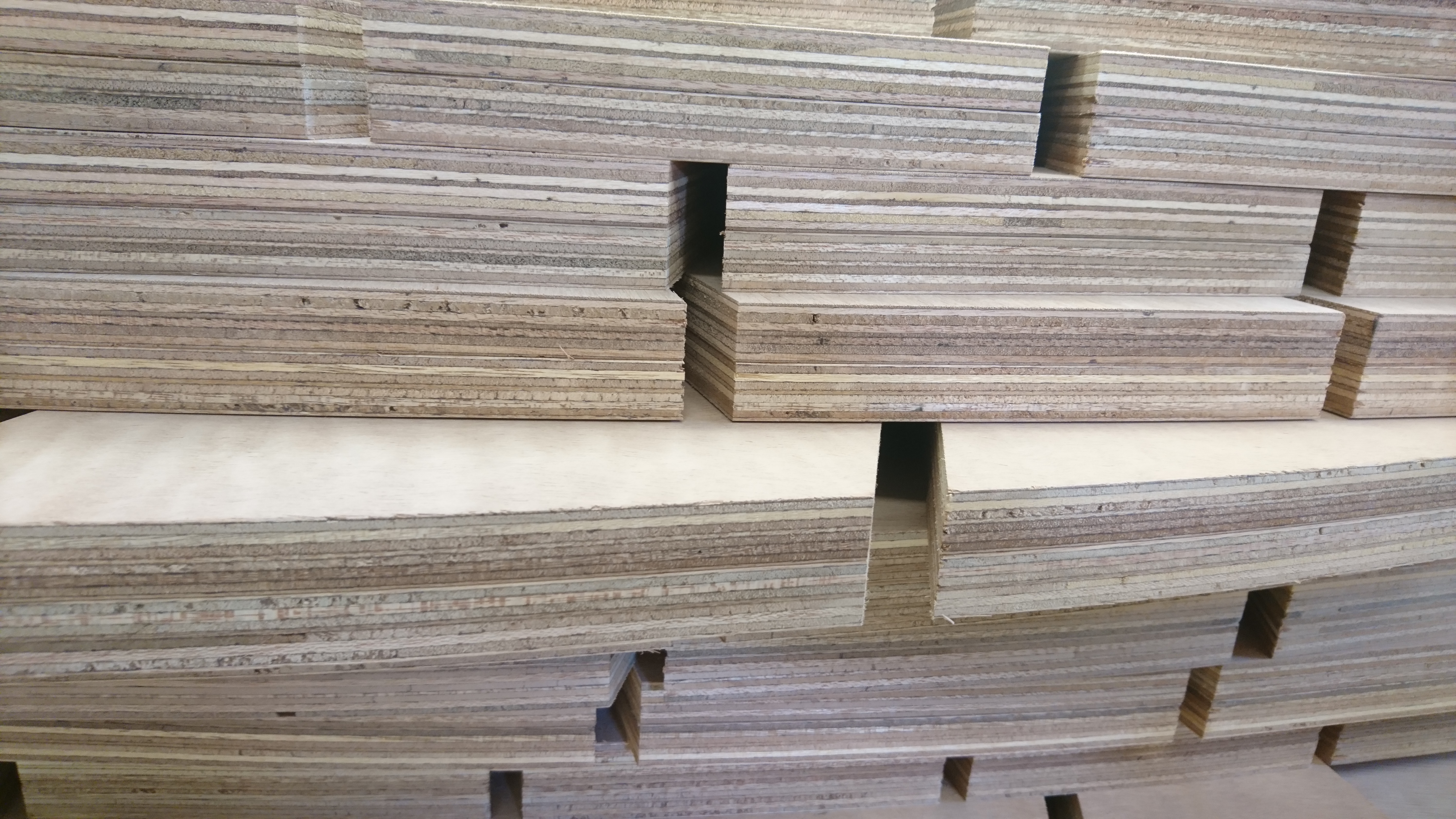

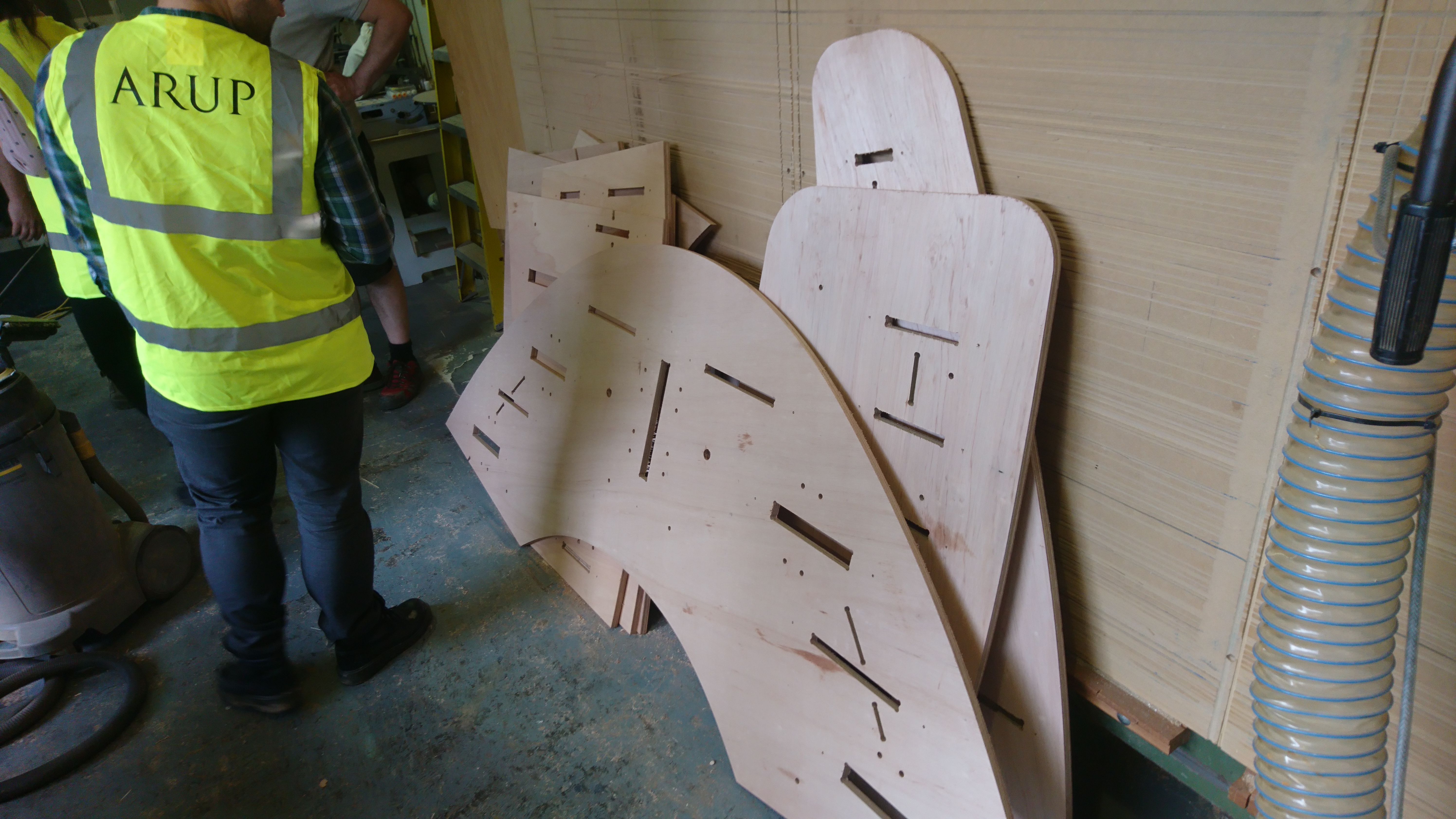

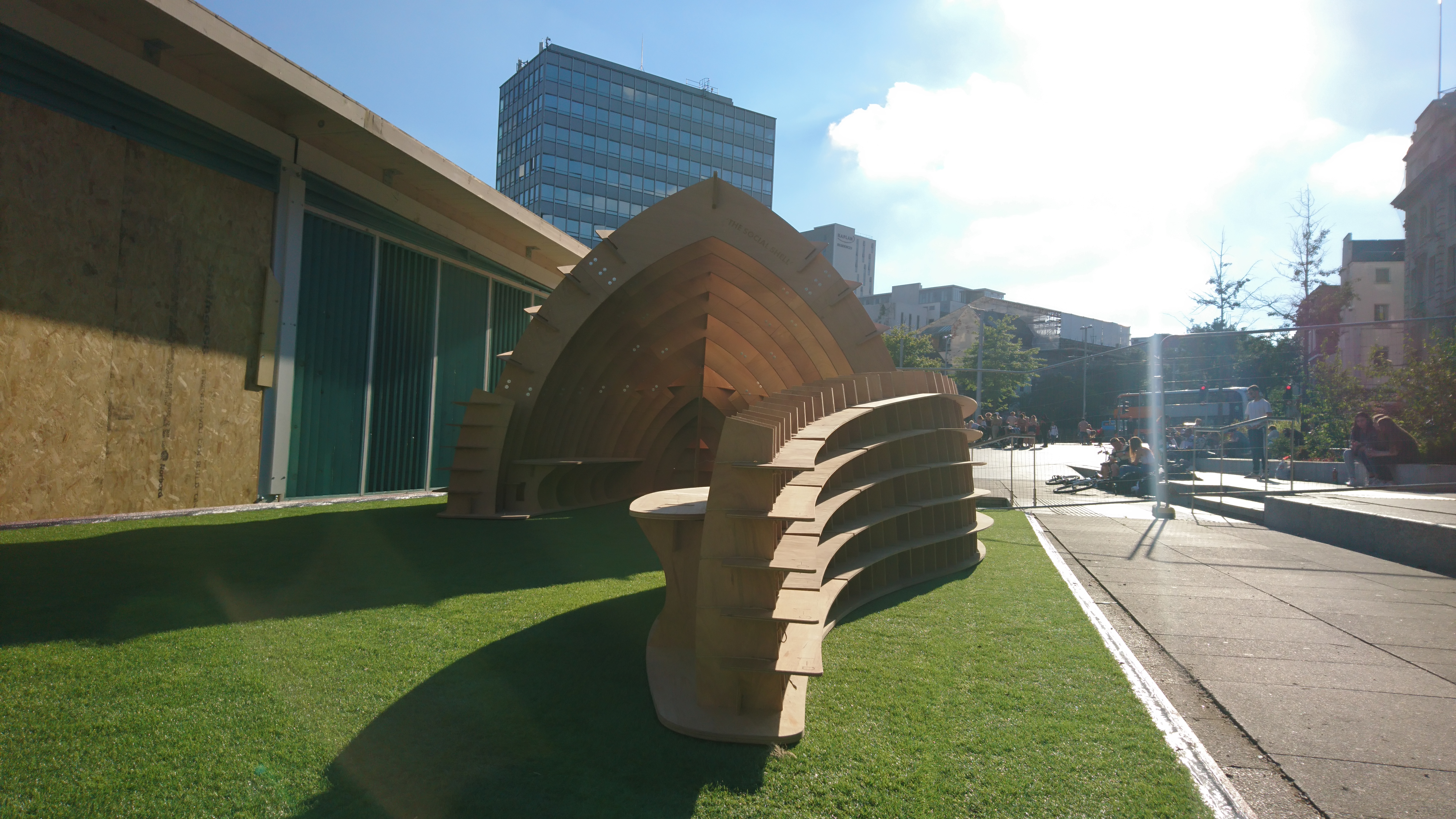

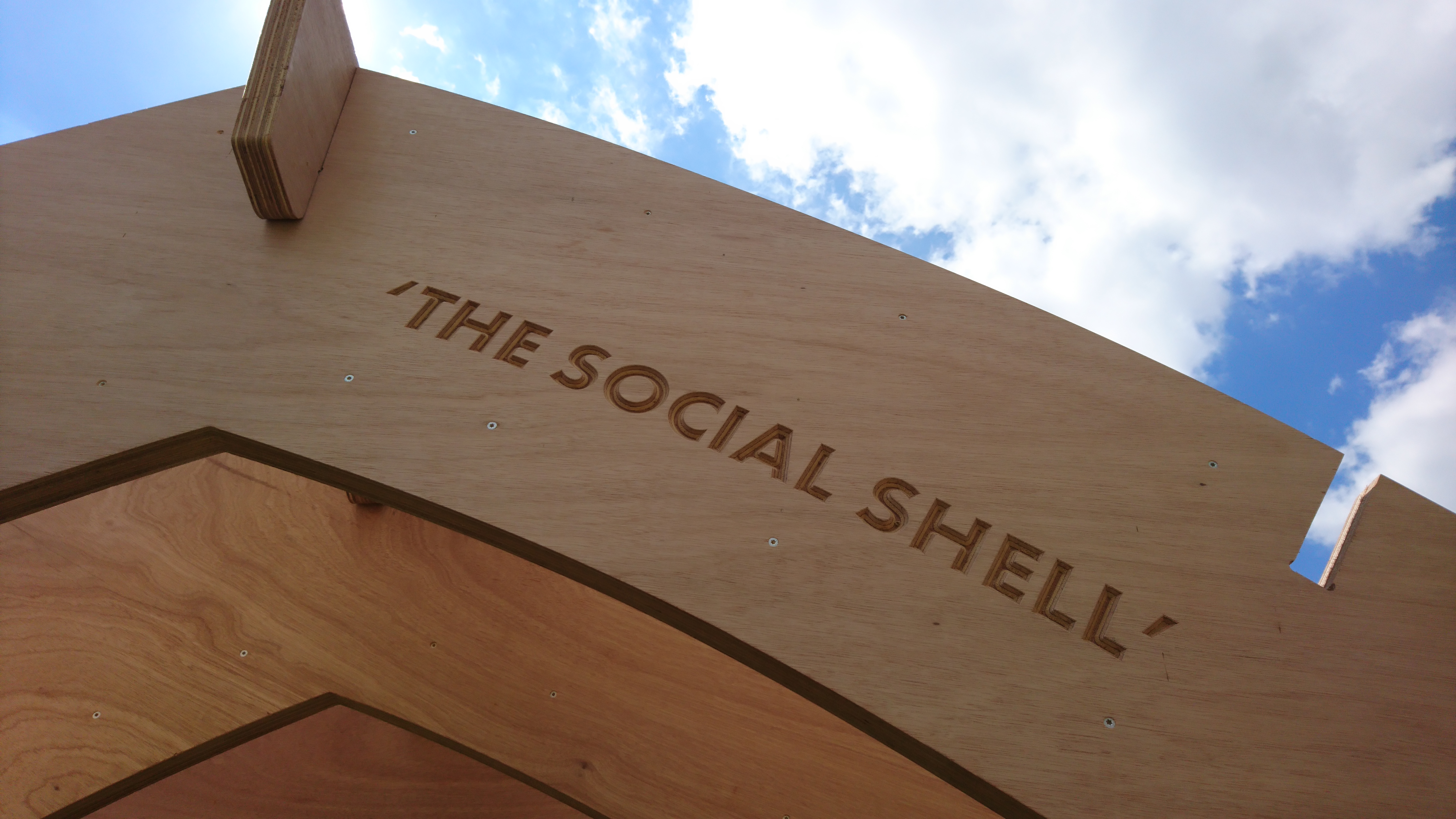

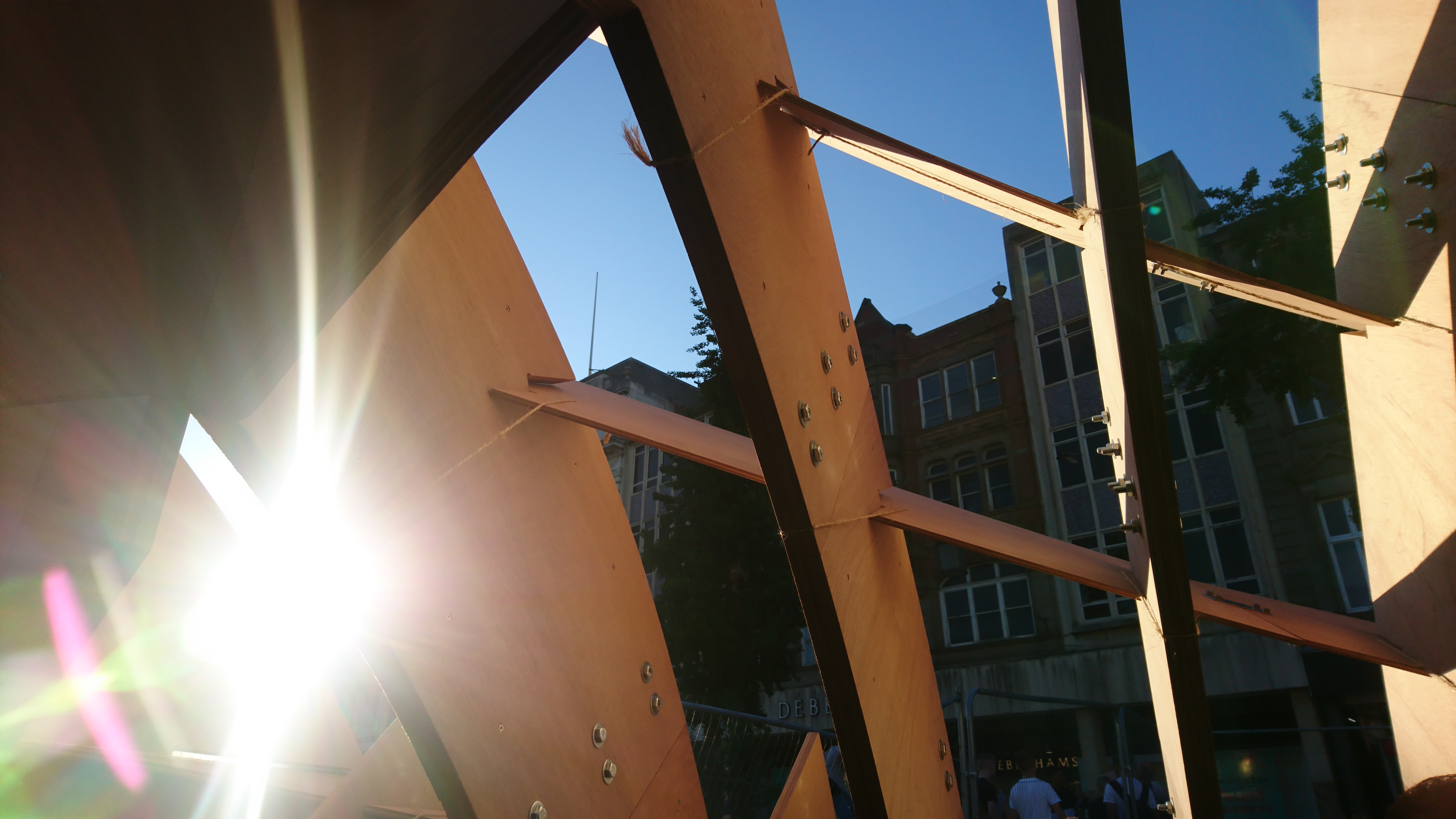

Following the workshops the team developed the winning Pavilion concept; “The Social Shell” into a fully buildable design. The Social Shell is cut entirely from 61 sheets of Performance Plywood using CNC routers. The design was refined to minimise the work on site, maximise material efficiency and minimise the need for metal bracketry,  instead preferring slotted bearing or bolted connections.

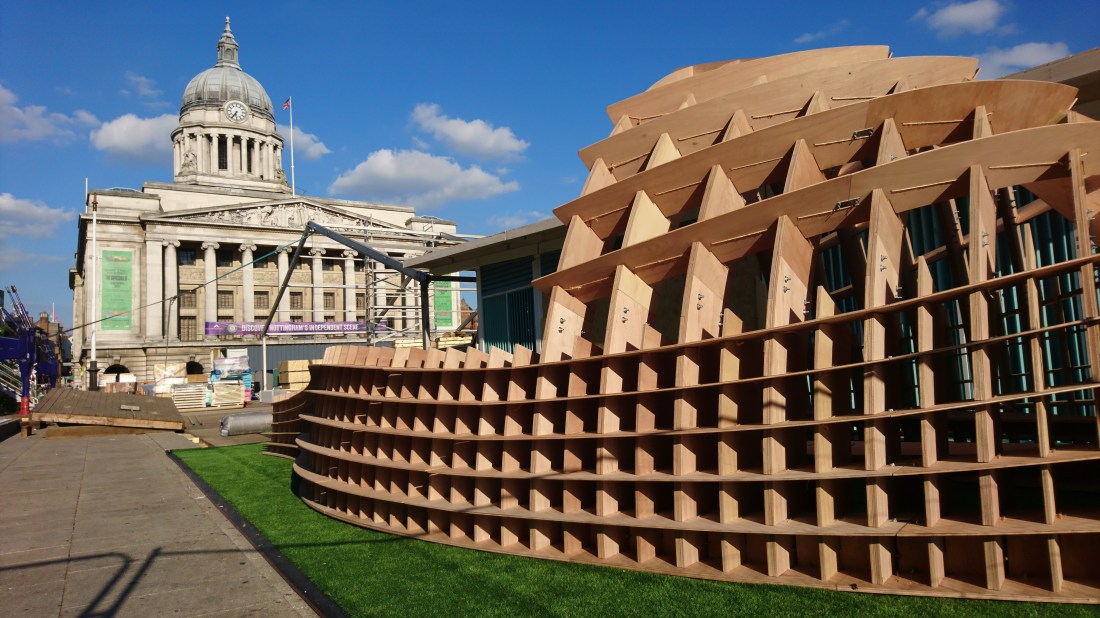

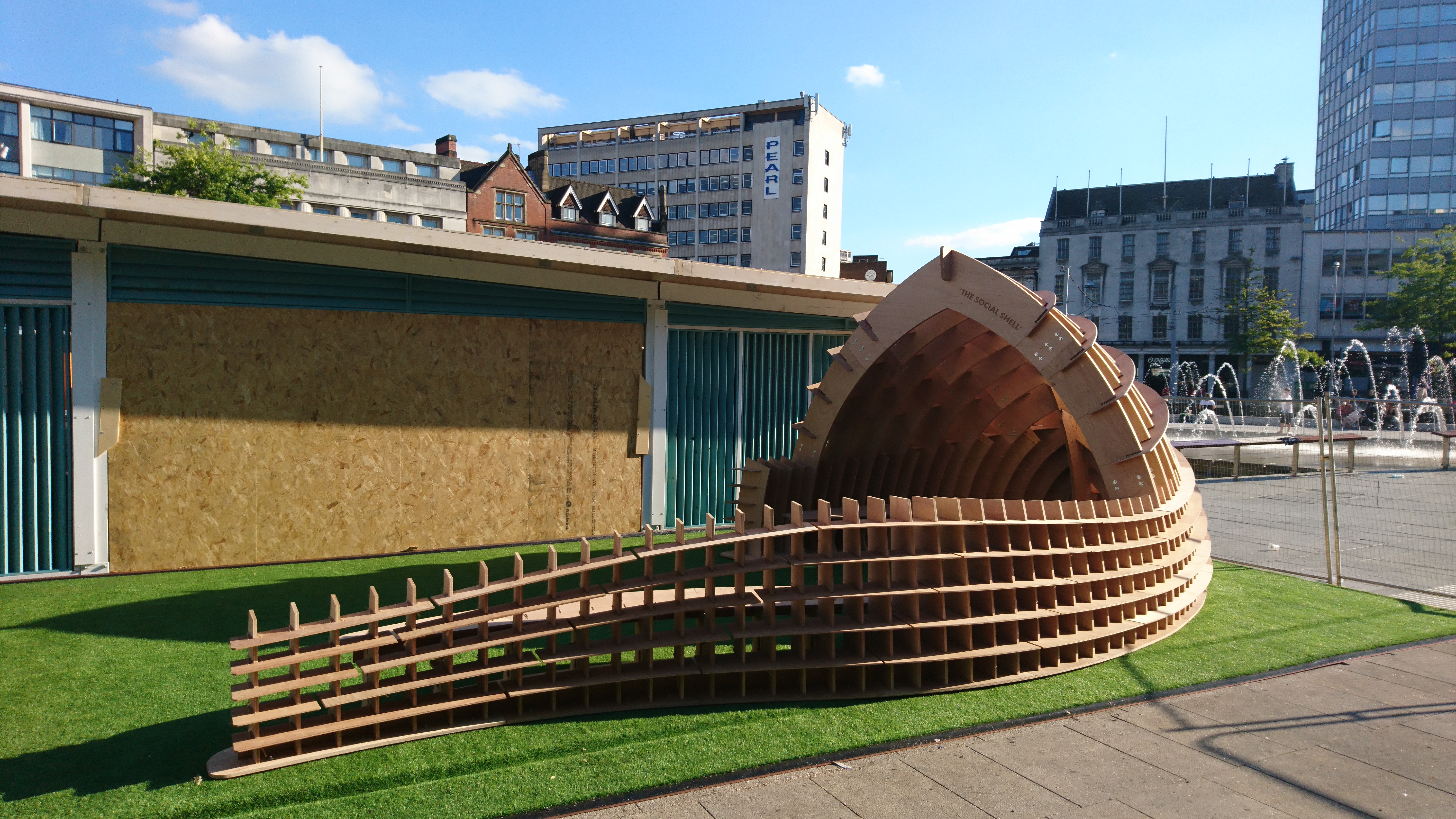

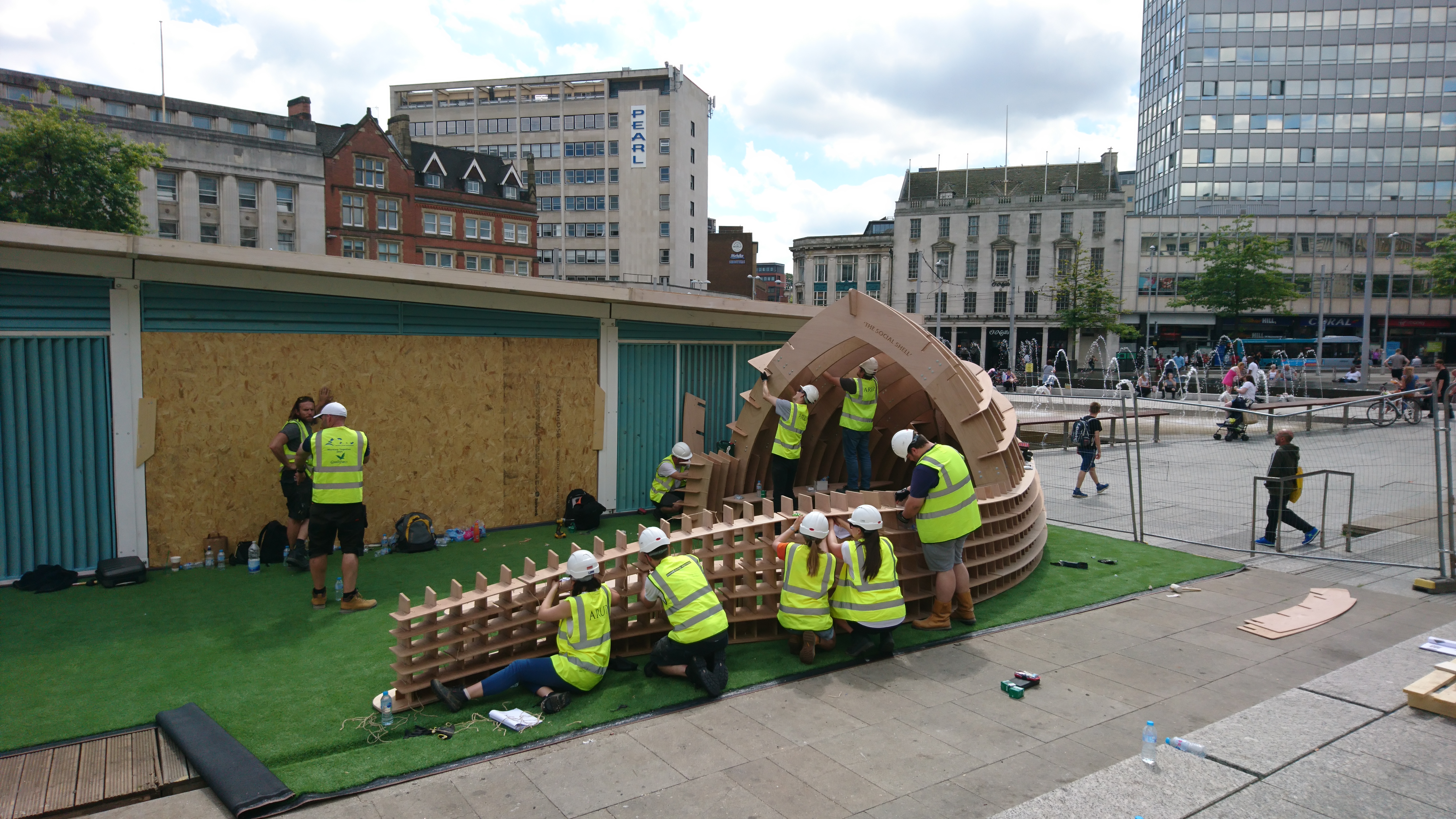

The pavilion was assembled on 5th July 2019 in Old Market Square in the heart of
Nottingham City Centre by a group of volunteers from the local architecture, engineering and construction industry. The pavilion will form a key part of the annual Nottingham Beach attraction, open until 1st September.

The flat-pack kit-of-parts design enabled the pavilion to be installed in just one day! A real triumph for all involved in the design process.

The construction in statistics:

  • 61 sheets of plywood
  • 300m of sanding
  • 450 bolts
  • 900 washers
  • 400m of string
  • 7.5ton lorry
  • 1 day to build

Community engagement has always been at the heart of this project with the students being updated along the way. We encourage anyone who finds themselves in Nottingham to head down to Old Market Square and experience the Social Shell for themselves.

Read all about it in a neat booklet here!
